Products chungchang sawifiahna

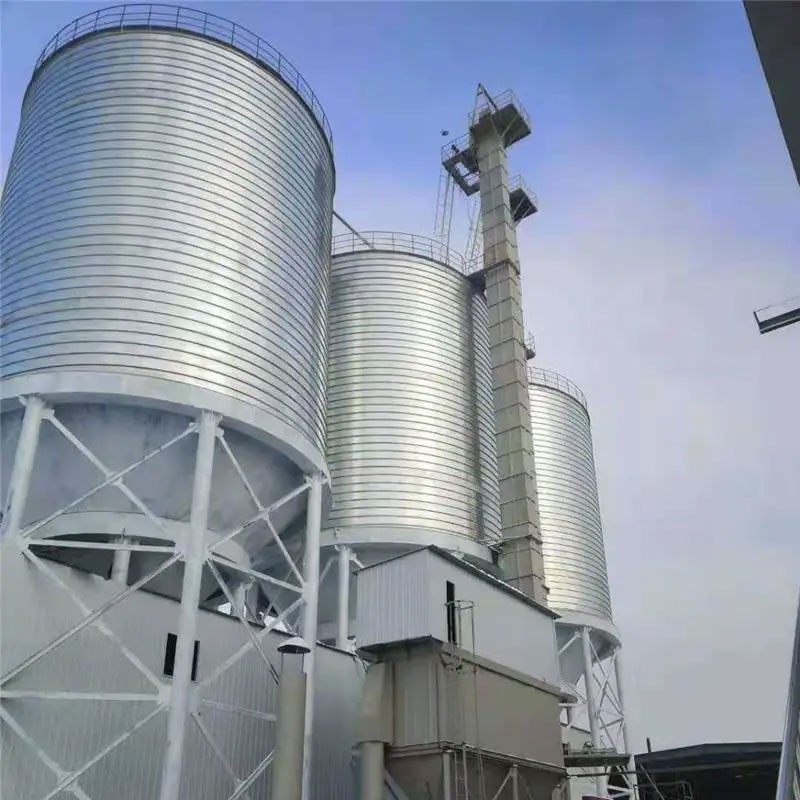

Chumispiral steel silo hmanga siam a nichu tunlai thil dahna hmun, on-site spiral forming technology hmanga siam a ni. Steel sheet te a rolling chhunzawm zel avangin transverse weld awm lo structure a siam a, chakna sang tak, sealing tha tak, leh sakna rang tak a pe a ni.
Core Parameters te chu a hnuaia mi ang hian a ni
|
Parameter a ni |
Zau zawng |
|
Leng tawk |
50T – 50,000T |
|
Diameter a ni |
3m – 60m |
|
Bungrua |
Galvanized Steel / Stainless Steel hmanga siam a ni |
|
Plate Thickness a ni |
2 – 6 mm a ni |
|
Rawngbawlna Nun |
Kum 25 – 30 chhung a ni |
|
Thli & Lirnghing laka inven theihna |
Grade 12 Thli / Magnitude 8-a lirnghing |
Specification kimchang tak chu la rawh

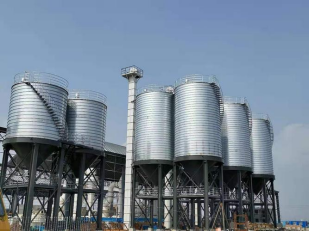

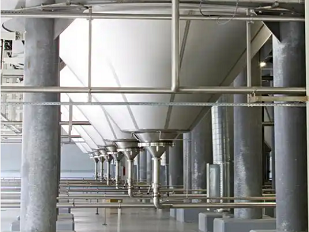

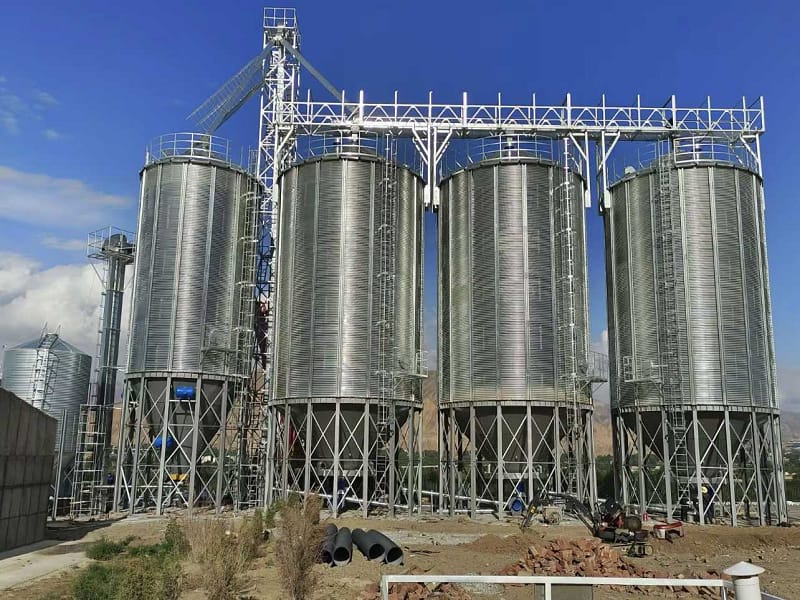

In sakna hmun a ni
Technical Principle hrang hrangte
Spiral hmanga inzawmkhawm (Spiral Interlocking Structure) a ni
Spiral steel silo hi hmanraw bik hmanga siam a ni a, chu chuan steel sheet te chu a roll chhunzawm zel a, spiral reinforcing ribs 30–40 mm a zau a siam a ni. Heng ribs te hi base material aiin a let nga velin an thuk zawk a, hei hian overall load-bearing capacity nasa takin a tipung a ni.
Welding awm lo → Structural chak lohna a ti bo
Self-locking structure → Stability a ti tha
Continuous forming → Chakna inang tlang zawk
Traditional welded silos nena khaikhin chuan: Structural strength hi 30% aia tam a pung a ni .
A thatna pawimawh tak tak
Structure chak tak, Hriselna sang tak nei
Spiral seams-a thickness chu original steel plate aiin a let nga velin a thuk zawk a, vertical leh circumferential stiffeners a siam a, chu chuan seismic, thli leh vur phurrit laka invenna tha tak a pe a ni. Spiral steel silo hian weld leh bolt hole a nei lo a, hei hian structural integrity tha tak a siam a, deformation leh leakage laka a inven theihna a siam bawk.
Airtightness tha tak a ni
Continuous mechanical interlocking seams leh air leakage rate 0.1% aia tlem emaw, a tlukpui emaw neiin, heng silo te hian grain fumigation leh inert gas hmanga dahkhawmna atana thil tulte an tlin a, pest control leh sterilization tha tak a awm thei a ni.

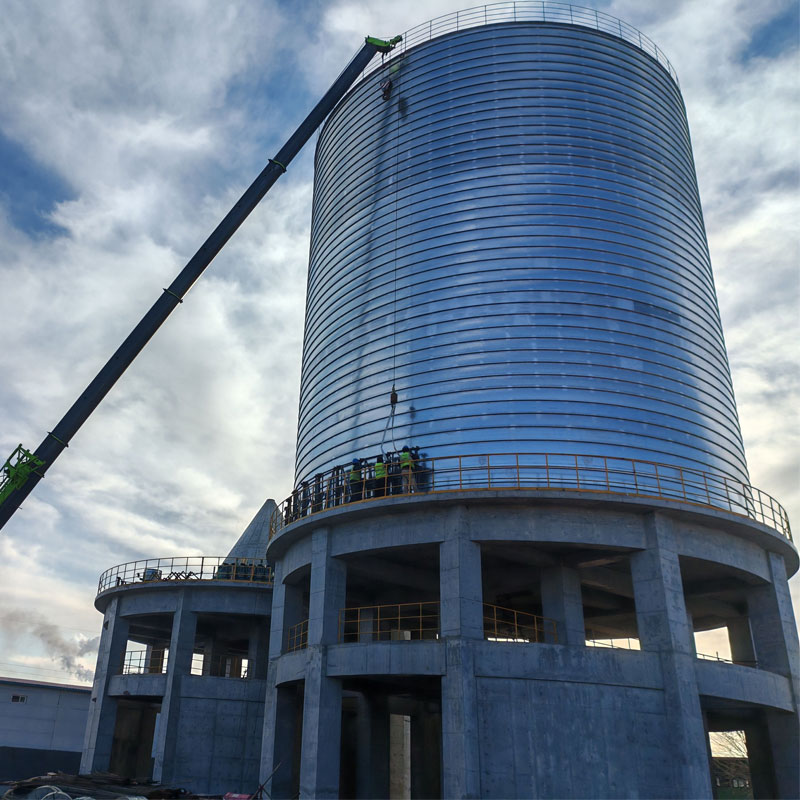

Rapid Construction a ni
On-site mechanical rolling hmang hian silo pakhat ( Tons 5,000 aia tlem emaw, a tlukpui emaw) chu ni 7–15 chauh chhungin a zo thei a-concrete silo aiin a let 5–8 in a rang zawk.
A rit lo (concrete silo capacity inang rit zawng 1/6 vel), chu chuan foundation cost a hniam zawk. 15%–20% velin weld silo capacity inang aiin a man a tlawm zawk.
Footprint compact tak leh hmun tam tak hman theihna
Silo diameter leh san zawng pawh a inthlak danglam thei; minimum silo spacing 500 mm chauh a nih avangin compact layout a awm thei a, ram a humhim thei bawk.
Dilna hrang hrang

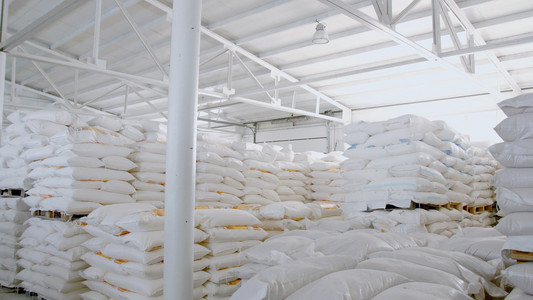

Thlai Industry lam a ni
Spiral steel silo hi buhfai dahna hmunah te, chhangphut siamna hmunah te, buhfai siamna hmunah te, zu siamna hmunah te, leh buhfai, buhfai, buhfai, soybean leh buhfai dangte dahna tur hmun dangah te hman theih a ni.

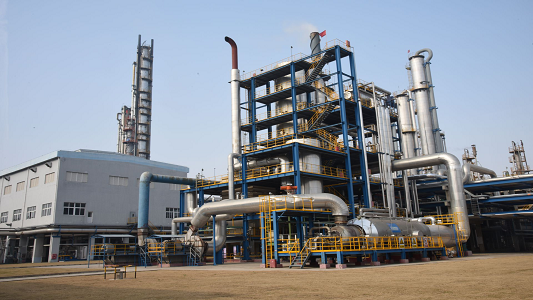

In sakna hmanrua emaw Cement Industry emaw a ni
Cement plant, grinding station leh mixing station te hian heng silo te hi cement, fly ash, slag powder, leh limestone powder te ang chi powder material dahna atan an hmang thin.
Steel silo lian tak takte hian tui leh caking a veng tha hle a, residual discharge rate chu<0.2%.

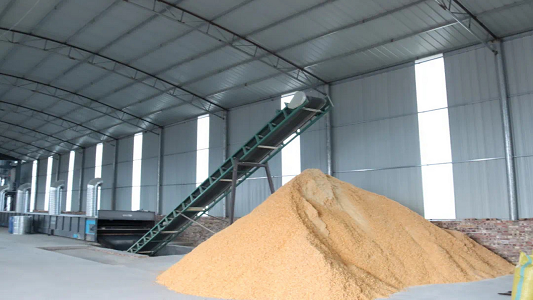

Feed leh Oil Industry te a ni
Feed mill leh oil mill-ah te hian raw material leh thil siam zawh tawh, corn, soybean meal, bran, leh rapeseed te dahkhawmna atan an hmang a, hei hian sealed environment a siam a, chu chuan insect infestation leh oxidation a veng thei a ni.

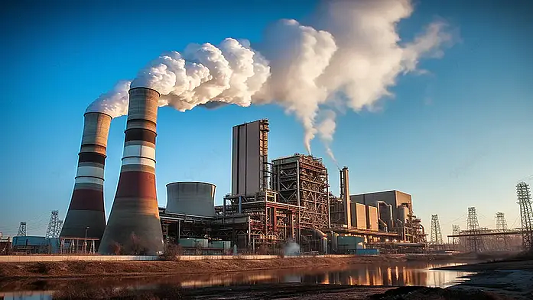

Chemical leh Environment humhalhna Industry a ni
Chemical plant, damdawi siamna hmun, leh starch mill-te chuan corn starch, chemical powder, additives, leh thil dang dahna atan an hmang a, food-grade hygiene standards an tlin a, bawlhhlawh a awm loh nan an hmang bawk.
Configurations duhthlan tur a awm
- Temperature enfiahna hmanrua a ni
- Automatic Discharge System hmanga thil tihchhuah a ni
- Dust Collection System a ni
- Ventilation System a ni
Configuration mamawh dang i neih chuan, .min rawn biak theih reng e.
FAQ
Q: Spiral silo leh assembled silo hi eng nge an danglamna?
A: Spiral silo hian sealing tha zawk leh installation rang zawk a pe a.
Q: Customization i pe em?
A: Ni e, capacity, diameter, leh configuration hrang hrangah customization kan pe a.
Q: Installation hian eng chen nge hun a duh?
A: Ni 7–15 chhung (5,000T) a ni.
