Rail fastening system-a core elastic component a nih angin international railway elastic clips te hi core dimension pali vel standardized a ni a, chungte chu materials, performance, testing, leh application te an ni. Framework pumpuiah hian "khawvel pum huapa pawm standard-te hmahruaitu, regional standard-te'n chipchiar taka pe thei, leh ram pum huap standard-te dinhmun hrang hrang nena inmil" structure a rawn tarlang a ni. An hnathawh ber chu elastic clip design, siam, test leh hman dan tur ruahmanna siam a ni a, ram hrang hrang leh rel kawng hrang hranga inthlak danglam theihna, himna leh a rei theihna tur enfiah a ni a, rel kawng scenario hrang hrang a huam a, chung zingah chuan conventional, heavy-haul, leh high-speed rail te pawh a tel a ni. Tunah hian international railway elastic clip standard hi chi thum-ah ṭhen a ni ber a, chungte chu internationally accepted standards, regionally unified standards, leh ram lian tana standard bikte an ni. Heng standard te hi an inzawm tlat a, anmahni ngaihtuahna an nei vek a, an vaiin international standard system kimchang tak an siam a ni.
1. International Organization for Standardization (ISO) nena inzawm tehfung siam
1. International Organization for Standardization (ISO) nena inzawm tehfung siam
A bulpui ber chu elastic strip-a material testing leh fastener system testing-ah a ni a, hei hi khawvel pum huapa elastic strip siam leh test-na atana a bulpui ber a ni. A bik takin:
- ISO 22074 series: "Railway Applications-Tracks-Fastening System Test Methods" hian clip pressure, lift stiffness, fatigue life, leh insulation performance te ang chi key indicator te testing procedure leh judgment standard te a tichiang a ni. Clip performance verification atana core general specification a ni.
- ISO 5948: "Spring Steel Testing Standard" hian spring bar atana hman tur spring steel-a chemical composition, mechanical property, metallographic structure leh thil tul dangte a tarlang a, spring bar-a material thlan dan tur unified standard a pe bawk.
Products chungchang sawifiahna
2. International Union of Railways (UIC) standard kaihhnawih Rel kawng component hrang hrangte tana ruahman bik, heng standard te hian rel kawng hnathawhna lama mamawh tak takte chu a phuhruk tha zawk a, international railway thawhhona atana bulpui ber a ni. Anni hian a bik takin: - UIC 860 series: "General Technical Conditions for Rail Fasteners", hei hian design principle, dimensional tolerances, surface treatment, leh elastic clips installation mamawh te a huam a, elastic clip leh rail leh iron pads inkara inmilna mamawh a tichiang a, international railway line hrang hrangah hman theih a ni. - UIC 712-3: "Specification for Fatigue Testing of Rail Fasteners" hian elastic clip-te tana fatigue life testing method a ngaih pawimawh ber a, operational reliability a awm theih nan elastic clip-te hian cyclic load bik hnuaiah crack emaw failure emaw an lantir loh a ngai a ni.
3. Europe rama tehfung (EN) .
Europe ram hrang hranga rel kawng network hi a inzawm tlat a, standards uniformity sang tak a nei bawk. Core standards hi international standards hman emaw tihthianghlim emaw nen a inang a, Europe ram leh European rail type hmangtu ramte tan pawh hman theih a ni. A bik takin:
- EN 13481 series: "Railway Applications-Tracks-Performance Requirements for Fastener Systems" hi European clip-te tana core standard a ni a, hmun thum-ah ṭhen a ni a, chungte chu Part 1 (general requirements), Part 2 (ballasted track fasteners, Class C clips ang chi model hman tlanglawn tak takte performance indicator tichiangtu), leh Part 3 te an ni (ballastless track fasteners, high-speed rail leh heavy-duty line-a hman tur atana tha).
- Standard thlawptu: German DIN standard (DIN 17221 "Spring Steel Specification", DIN EN 13481, European standard nen a inang), British BS standard (BS EN 13481, European standard nen a inang), hei hian thil siam dan leh testing details a tithianghlim lehzual a ni.
4.North American Standard American leh Canada rel kawngte chu a bulpui ber atan hmangin North America-a phurrit rit leh axle load lian tak takte line characteristic angin a insiamrem thei a ni. Standard-ah hian practicality leh durability lam a ngaih pawimawh ber a ni. A bik takin: - AREMA standards (American Railway Engineering and Maintenance Association): "Railway Engineering Manual" bung 3 "Track Structure"-ah hian elastic bar-te buckling pressure, fatigue life, leh material mamawh te a chiang hle. AISI 6150 spring steel hi hman tlanglawn a ni a, elastic bar-te buckling pressure chu 10-15kN a tling tur a ni tih a tarlang a, fatigue life pawh 3×106 times. - aia tlem lo a ni tur a ni spring material testing leh performance testing-na atana technical support a ni a, AREMA standard nena hman dun a ni. ### 3. Ram lian-specific standards (ram dinhmun nena inmil, thil danglam bik) Ram tin hian anmahni rel kawng kalpui dan (high-speed rail speed, heavy-duty axle load, rail type specifications ang chi) te chu an inzawm khawm a, international leh regional standards hmanga technical requirements leh model specifications of ram chhunga hman tlanglawn tak elastic bar hmangin a line mamawh a phuhruk theih nan a hmang thin.

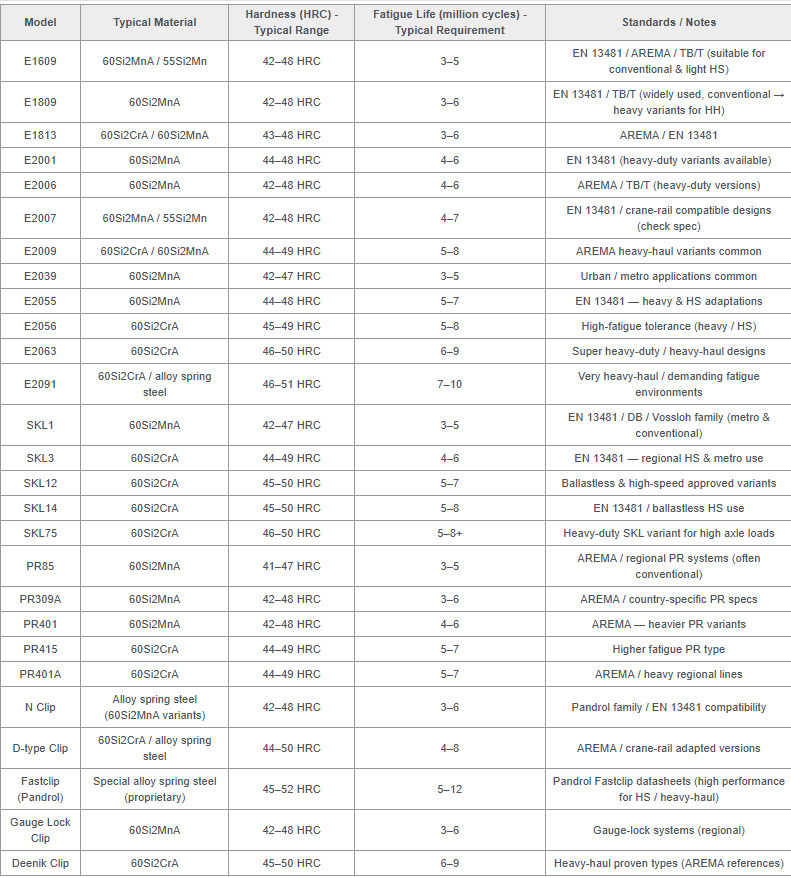

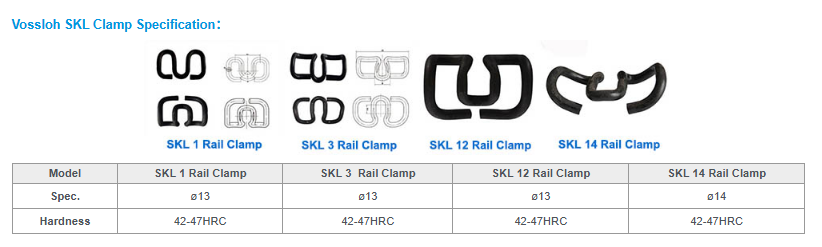

5. German standard (Vossloh system supporting) German Vossloh fastener system atanga chhut chuan elastic strip standard bik siam a ni a, snap pressure grading a awm a, hei hi Europe ram leh khawvel ram tam takah rel kawng siamna atan a tha hle: - Core standards: EN 10089 (Spring Steel Specification), DIN SKL series spring bars (SKL 12/15/18) tan, chung zingah chuan SKL 15 spring bars hian buckle pressure 15kN a nei a, UIC60 rail tan a tha a, hman lar ber. 6. British Standard (Pandrol system supporting) British Pandrol fastener system hian heavy-duty leh quick installation mamawhna a ngaih pawimawh ber a ni. Core standard chu BS EN 13481 a ni a, clip langsar tak takte chu PR series (buckling pressure sang tak, heavy-duty railway-a hman tlak), Fast Clip system (pre-assembled clips, mechanized installation supporting), leh Nabla clips (blade-shaped design, iron backing plate bik atana hman tlak) te a ni.

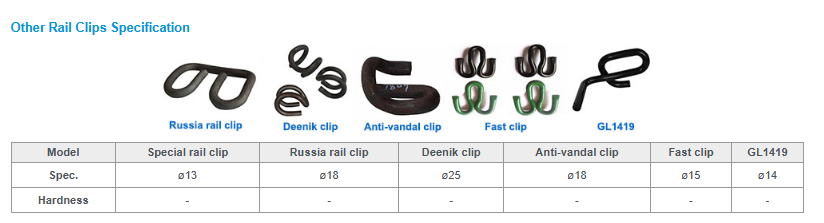

7. Ram/region dang standard - Japan: JIS E 1115 "Track Fastener Standard", E-type clip series hmanga siam, Japan-a narrow gauge leh Shinkansen high{1}}speed rail line-te tana remchang, lightweight leh elastic adaptation. - Russia: GOST 31385 "Technical Conditions for Railway Fasteners", Russian broad gauge line nena inmil, elastic strip-a material, size leh anti-corrosion mamawhna a tichiang a, Russian standard rail leh iron backing plate te nen a inmil bawk. - Australia: AS 1085.14 "Track Fastener Standard", Australian heavy-haul rel kawng nena inmil, chuan elastic bar-te hahna dam chhung leh a chhe thei lo.
8. Chinese tehfung (TB/T Series) 1.1.
China-a rel kawng pangngai, high-speed, leh heavy-haul railway-te mamawh hrang hrangte nena inmil takin, elastic rail standard system kimchang tak siam a ni a, a bulpui ber chu:
- TB/T 3065 series: Railway Fastener Springs (version thar ber TB/T 3065-2020), Spring hman tlanglawn tak tak Type I, Type II, leh Type III te huamtu, spring hrang hrang (a tlangpuiin 60Si2MnA leh 60Si2CrA spring steel) tana fastening force, spring travel, leh material mamawh te tarlanna.
- TB/T 3395.3-2015: High-speed rail elastic clips tan special standard, hei hian ballastless track elastic clips elasticity, fatigue life leh insulation performance atana mamawh sang zawk a dah a, high-speed rail line speed 350km/h leh a chunglam tan a tha hle.
A taka hman chuan rel kawng project tam tak chuan ramri kaltlanga-a inmil theihna turin UIC leh EN standard te chu an dah pawimawh ber a ni. National standards hian operational condition bikte tan kaihhruaina dang a pe bawk. A pum puiin, elastic clip standardization hian material thlan, structural design, leh fatigue performance te a huam a, khawvel puma rel kawng him leh rintlak taka kalpui theihna tur lungphum nghet tak a siam a ni.
