LED street light - detail sawifiahna leh tehkhin dan
LED kawngpui eng .Is a directional light, power consumption tlem, driver performance tha, fast response, shock resistance sang, dam rei, green environment humhalh, kawngpui eng lama hman a ni nasa hle, residential lighting.
Kan product advantage:
1. Environment aluminum quality tha tak, lumna a tichhe nasa a, corrosion resistance tha tak, anti-thunder leh waterproof. te pawh a awm bawk.
2. Glass cover toughened, transparency tha tak, beam angle zau tak.
3. International top brand LED chip hmangin, light fixture stable a awm theih nan, leh dam chhung rei tak chhung atan.
4. kawngpui ziarang atanga siam, LED lens design lama tui, special optics technology hmanga, leh luminance distribution inang hmanga leia light inang tlanga sem chhuah theihna tur, uniformity leh hman dan tha ber tur.
5. IP65, leh maintenance quantity tihtlem nan self-cleaning function tha tak a ni thei.
LED street light atana installation parameters te chu .
| Specification . | 80W LED kawngpui eng a ni. | ||||||
| luminous flux a ni. | 6120lm a ni. | ||||||
| Installation san zawng . | A laiah chuan . of illumination . | average intensity . of illumination . | Intluk Illumination 100 a ni. | Power sem dan . sakhal zawng | Lamp Pole 1000 a ni. hlatzawng | Khawlai vang | Efficiency spot 1000 a ni. Light pakhat atan cut off . |
| 4m | 86Lux a ni. | 48Lux a ni. | 0.63 | 1.16w/m2 | 12m | Kawngpui zau zawng . | 13.5m X 5m |
| 5m | 60lux a ni. | 39Lux a ni. | 0.75 | 0.73w/m2 | 15m | 17m X 6m | |
| 6m | 52Lux a ni. | 21lux a ni. | 0.59 | 0.55w/m2 | 18m | Lane pahnih . | 20m X 7.5m |
| 7m | 31lux a ni. | 16Lux a ni. | 0.66 | 0.47w/m2 | 21m | 24m X 8.5m | |
| 8m | 29Lux a ni. | 13LUX a ni. | 0.61 | 0.41w/m2 | 24m | 27.5m X 10m | |
| 9m | 23lux a ni. | 10lux a ni. | 0.58 | 0.37w/m2 | 27m | 31m X 11m | |
| 10m | 20lux a ni. | 7.5lux a ni. | 0.58 | 0.22w/m2 | 30m | Lane pathum . | 34m X 12.5m |
| 11m | 16Lux a ni. | 4.1lux a ni. | 0.51 | 0.16w/m2 | 35m | 35m X 14m | |
| 12m | 40m | 41m X 15m | |||||
| Specification . | 120W LED kawngpui eng a ni. | ||||||
| luminous flux a ni. | 9120lm a ni. | ||||||
Installation . Sanzawng | A laiah chuan . of illumination . | average intensity . of illumination . | Intluk Illumination 100 a ni. | Power sem dan . sakhal zawng | Lamp Pole 1000 a ni. hlatzawng | Khawlai vang | Efficiency spot 1000 a ni. Light pakhat atan cut off . |
| 4m | 108Lux a ni. | 58Lux a ni. | 0.63 | 1.51w/m2 | 12m | Kawngpui zau zawng . | 13.5m X 5m |
| 5m | 87LUX a ni. | 39Lux a ni. | 0.75 | 1.21w/m2 | 15m | 17m X 6m | |
| 6m | 60lux a ni. | 25Lux a ni. | 0.59 | 0.72w/m2 | 18m | Lane pahnih . | 20m X 7.5m |
| 7m | 45Lux a ni. | 20lux a ni. | 0.66 | 0.61w/m2 | 21m | 24m X 8.5m | |
| 8m | 33LUX a ni. | 18Lux a ni. | 0.61 | 0.54w/m2 | 24m | 27.5m X 10m | |
| 9m | 26Lux a ni. | 13LUX a ni. | 0.58 | 0.48w/m2 | 27m | 31m X 11m | |
| 10m | 22Lux a ni. | 9lux a ni. | 0.58 | 0.28w/m2 | 30m | Lane pathum . | 34m X 12.5m |
| 11m | 17Lux a ni. | 7lux a ni. | 0.56 | 0.24w/m2 | 35m | 35m X 14m | |
| 12m | 14lux a ni. | 6lux a ni. | 0.41 | 0.21w/m2 | 40m | 41m X 15m | |
| Specification . | 160W LED kawngpui eng a ni. | ||||||
| luminous flux a ni. | 11250lm a ni. | ||||||
Installation . Sanzawng | A laiah chuan . of illumination . | average intensity . of illumination . | Intluk Illumination 100 a ni. | Power sem dan . sakhal zawng | Lamp Pole 1000 a ni. hlatzawng | Khawlai vang | Efficiency SPO 1000 a ni.t Light pakhat atan cut off . |
| 4m | 185LUX a ni. | 84LUX a ni. | 0.59 | 2.13w/m2 | 12m | Kawngpui zau zawng . | 13.5m X 5m |
| 5m | 120lux a ni. | 55lux a ni. | 0.75 | 1.70w/m2 | 15m | 17m X 6m | |
| 6m | 80lux a ni. | 39Lux a ni. | 0.59 | 1.01w/m2 | 18m | Lane pahnih . | 20m X 7.5m |
| 7m | 60lux a ni. | 27Lux a ni. | 0.66 | 0.87w/m2 | 21m | 24m X 8.5m | |
| 8m | 46Lux a ni. | 23lux a ni. | 0.61 | 0.76w/m2 | 24m | 27.5m X 10m | |
| 9m | 36Lux a ni. | 20lux a ni. | 0.58 | 0.67w/m2 | 27m | 31m X 11m | |
| 10m | 30lux a ni. | 18Lux a ni. | 0.58 | 0.40w/m2 | 30m | Lane pathum . | 34m X 12.5m |
| 11m | 25Lux a ni. | 13LUX a ni. | 0.56 | 0.34w/m2 | 35m | 35m X 14m | |
| 12m | 21lux a ni. | 8lux a ni. | 0.41 | 0.30w/m2 | 40m | 41m X 15m | |

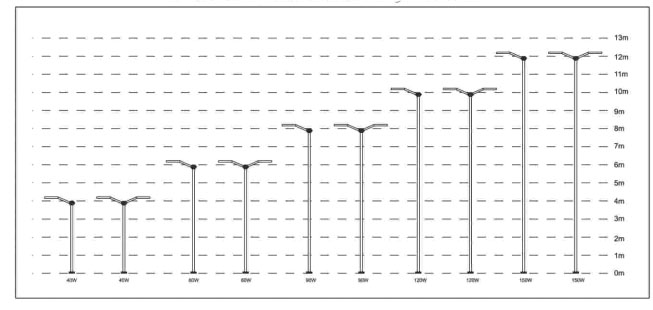

LED street light dahna san zawng chart .
Kan LED street light leh high pressure sodium street light te khaikhin dan .
| Specification . | Input tak tak . luminous flux a ni. | Rawng temp . | CRI 10 a ni. | Tlanglawn Illuminace 100 a ni. | Input . Thuneihna |
| 80W LED kawngpui eng a ni. | 6000lm a ni. | 5000K | 100 aia tam emaw, a tlukpui emaw .80 | 19-21 Lux/6m a ni. | 80W |
| 150W High Pressure Sodium Street Light a ni. | 5600lm a ni. | 2000K | 100 aia tlem emaw, a tlukpui emaw.25 | 18-201 Lux/6m a ni. | 150W |
| 81W LED kawngpui eng a ni. | 9000lm a ni. | 5000K | 80 aia tam emaw, a tlukpui emaw . | 18-20 Lux/8m a ni. | 120W |
| 151W High Pressure Sodium Street Light a ni. | 9000lm a ni. | 2000K | 25 aia tlem emaw a aia tlem emaw . | 17-19 Lux/8m a ni. | 225W |
| 82W LED kawngpui eng a ni. | 12000lm a ni. | 5000K | 80 aia tam emaw, a tlukpui emaw . | 20-22 Lux/8m a ni. | 160W |
| 152W High Pressure Sodium Street Light a ni. | 11200lm a ni. | 2000K | 25 aia tlem emaw a aia tlem emaw . | 19-21 Lux/10m a ni. | 375W |
| 83W LED kawngpui eng a ni. | 15000lm a ni. | 5000K | 80 aia tam emaw, a tlukpui emaw . | 21-24 Lux/12m a ni. | 200W |
| 153W High Pressure Sodium Street Light a ni. | 14494lm a ni. | 2000K | 25 aia tlem emaw a aia tlem emaw . | 20-23 Lux/12m a ni. | 585W |
Listen Technology Co., Ltd. hian a siam chhuah dan tur a siam a, a siam chhuah dan tur a ngaihtuah bawk.LED a rawn eng chhuak a.thil siam chhuah ang chi .Solar street light 100 a ni.,LED kawngpui eng .,LED tuilian light ., LED High Bay Light a ni., LED tui hnuaia light .etc{. tih a ni.
Kan supply che chauh che a, quality sang leh competitive price. OEM/ODM service a awm a, i project atana lighting solution tha ber ber pe turin kan inpe a ni. zawhna emaw zawhna emaw eng pawh, khawngaihin .Kan rawn biak theih reng e A nih loh leh e-mail hmangin:
